Stainless Steel Tube Fitting Specifications

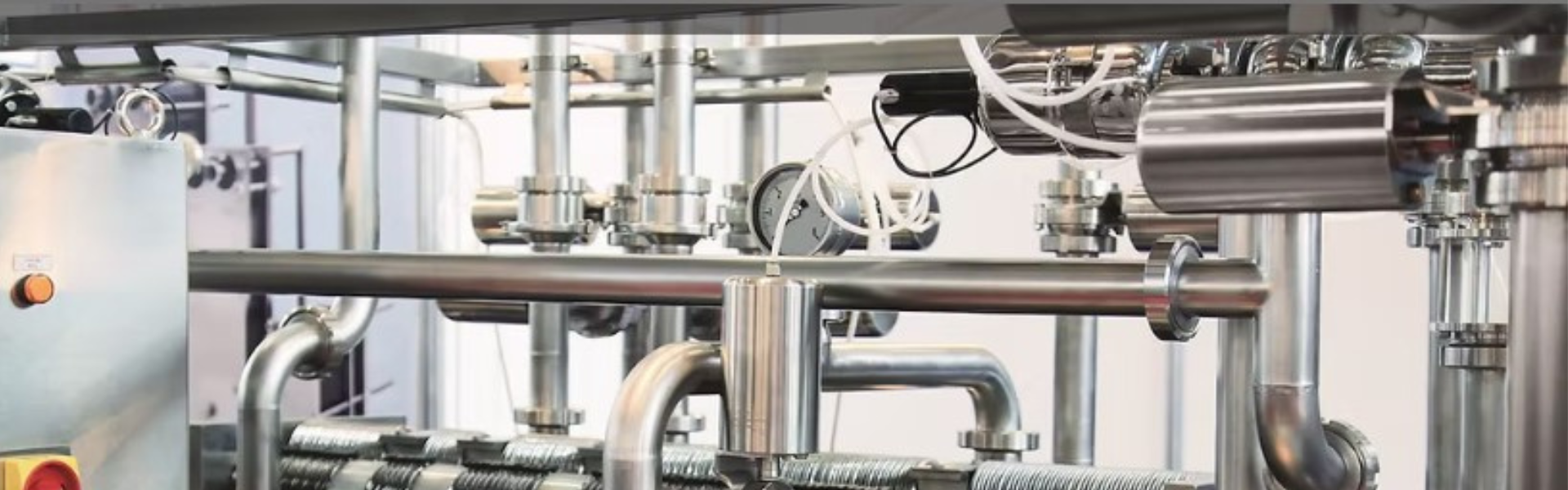

Industrial Tube Manufacturing stocks a range of butt weld fittings to complement our Stainless Hygienic Tube sizing, suitable for process lines in dairy factories, breweries, distilleries and other sanitary and food processing applications. We partner with suppliers who understand process engineering, ensuring we deliver high-quality sanitary tube fittings that provide a consistent and straightforward fit-up with our tube.

Specification: Fittings are manufactured to the AS 1528.3 standard. This Standard specifies dimensional, material and hygienic requirements for butt weld tubular fittings including bends, tees, reducers, y-sections and crosses, for incorporation in tube lines for food processing and hygienic applications. All bends are manufactured in New Zealand to Universal Standard (UNI) dimensions.

Surface Finish: For all fittings, the external surface is polished to a 320G finish. The internal surface (excluding weld zone) is under 0.8μm Ra as per the standard. The weld area is under the maximum Rt value of 14.0μm.

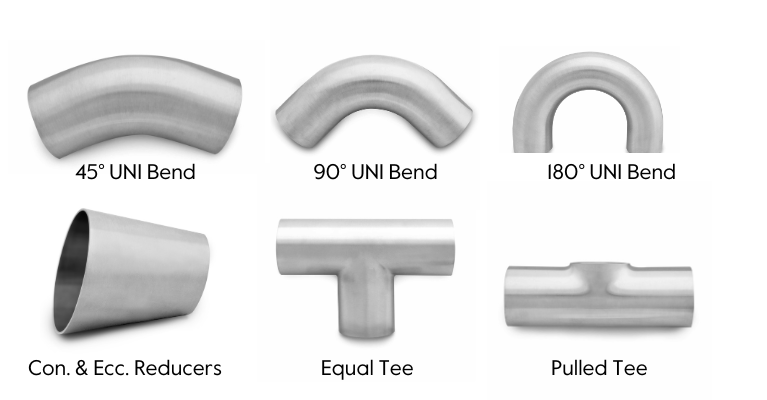

45° UNI Bend

90° UNI Bend

180° UNI Bend

Concentric Short Reducers

Tees Pulled

Eccentric Short Reducers

Fitting Specifications

	RANGE
45° UNI Bend	25.4 - 152.4mm
90° UNI Bend	25.4 - 152.4mm
180° UNI Bend	38.1 - 76.2mm
Con. & Ecc. Reducers	25.4 - 101.6mm
Equal Tee	25.4 - 101.6mm
Pulled Tee	25.4 - 101.6mm

45° Uni Bends / Elbos (1.5D nominal centreline radius)

	Unit Weight (KG)	Grade	Radius (mm)
45° Uni 1.6x25.4	0.08	316L	37.1
45° Uni 1.6x31.8	0.12	316L	47.6
45° Uni 1.6x38.1	0.12	316L	57.2
45° Uni 1.6x44.5	0.23	316L	79.4
45° Uni 1.6x50.8	0.23	304L, 316L	76.2
45° Uni 1.6x63.5	0.32	304L, 316L	95.3
45° Uni 1.6x76.2	0.43	304L, 316L	114.3
45° Uni 1.6x101.6	0.66	304L, 316L	152.4
45° Uni 1.6x127	1.12	304L, 316L	190.5
45° Uni 1.6x152.4	2.00	316L	228.6
45° Uni 1.6x25.4	0.08	316L	37.1
45° Uni 1.6x31.8	0.12	316L	47.6
45° Uni 1.6x38.1	0.12	316L	57.2
45° Uni 1.6x44.5	0.23	316L	79.4
45° Uni 1.6x50.8	0.23	304L, 316L	76.2
45° Uni 1.6x63.5	0.32	304L, 316L	95.3
45° Uni 1.6x76.2	0.43	304L, 316L	114.3
45° Uni 1.6x101.6	0.66	304L, 316L	152.4
45° Uni 1.6x127	1.12	304L, 316L	190.5
45° Uni 1.6x152.4	2.00	316L	228.6

90° Uni Bends / Elbos (1.5D nominal centreline radius)

	Unit Weight (KG)	Grade	Radius (mm)
90° Uni 1.6x25.4	0.11	316L	38.1
90° Uni 1.6x31.8	0.15	316L	47.6
90° Uni 1.6x38.1	0.21	316L	57.2
90° Uni 1.6x44.5	0.32	316L	79.4
90° Uni 1.6x50.8	0.34	304L, 316L	76.2
90° Uni 1.6x63.5	0.48	304L, 316L	95.3
90° Uni 1.6x76.2	0.66	304L, 316L	114.3
90° Uni 1.6x101.6	1.12	304L, 316L	152.4
90° Uni 1.6x127	1.85	304L, 316L	190.5
90° Uni 1.6x152.4	3.20	316L	228.6
90° Uni 1.6x25.4	0.11	316L	38.1
90° Uni 1.6x31.8	0.15	316L	47.6
90° Uni 1.6x38.1	0.21	316L	57.2
90° Uni 1.6x44.5	0.32	316L	79.4
90° Uni 1.6x50.8	0.34	304L, 316L	76.2
90° Uni 1.6x63.5	0.48	304L, 316L	95.3
90° Uni 1.6x76.2	0.66	304L, 316L	114.3
90° Uni 1.6x101.6	1.12	304L, 316L	152.4
90° Uni 1.6x127	1.85	304L, 316L	190.5
90° Uni 1.6x152.4	3.20	316L	228.6

180° Uni Bends / Elbos (1.5D nominal centreline radius)

	Unit Weight (KG)	Grade	Radius (mm)
180° Uni 1.6x38.1	0.32	316L	57.2
180° Uni 1.6x50.8	0.55	316L	76.2

Concentric Short Reducers

	Unit Weight (KG)	Grade
Reduce Con. 1.6x31.8-25.4	0.04	316L
Reduce Con. 1.6x38.1-25.4	0.05	316L
Reduce Con. 1.6x38.1-31.8	0.05	316L
Reduce Con. 1.6x50.8-25.4	0.08	316L
Reduce Con 1.6x50.8-31.8	0.18	316L
Reduce Con. 1.6x50.8-38.1	0.08	316L
Reduce Con. 1.6x63.5-25.4	0.13	316L
Reduce Con. 1.6x63.5-31.8	0.13	316L
Reduce Con. 1.6x63.5-38.1	0.13	316L
Reduce Con. 1.6x63.5-50.8	0.13	316L
Reduce Con. 1.6x76.2-25.4	0.15	316L
Reduce Con. 1.6x76.2-38.1	0.19	316L
Reduce Con. 1.6x76.2-50.8	0.18	316L
Reduce Con. 1.6x76.2-63.5	0.19	316L
Reduce Con. 1.6x101.6x38.1	0.30	316L
Reduce Con. 1.6x101.6x50.8	0.33	316L
Reduce Con. 1.6x101.6x63.5	0.32	316L
Reduce Con. 1.6x101.6x76.2	0.33	316L
Reduce Con. 1.6x127x76.2	0.55	316L
Reduce Con. 1.6x127x101.6	0.59	316L
Reduce Con. 1.6x152x50.8	0.66	316L
Reduce Con. 1.6x152x76.2	0.79	316L
Reduce Con. 1.6x152x101.6	0.96	316L
Shorter reducer. Height equal to widest diameter.

Tees Pulled

	Unit Weight (KG)	Grade
Tees Pulled 1.6x25.4	0.18	316L
Tees Pulled 1.6x31.8	0.24	316L
Tees Pulled 1.6x.38.1	0.37	316L
Tees Pulled 1.6x50.8	0.64	316L
Tees Pulled 1.6x63.5	1.15	316L
Tees Pulled 1.6x76.2	1.50	316L
Tees Pulled 1.6x101.6	2.62	316L
Leg length equal to tube diameter. Tee length 3 x tube diameter.

Eccentric Short Reducers

	Unit Weight (KG)	Grade
Reducer Ecc. 1.6x38.1-25.4	0.05	316L
Reducer Ecc 1.6x38.1-31.8	0.05	316L
Reducer Ecc 1.6x50.8-25.4	0.09	316L
Reducer Ecc 1.6x50.8-38.1	0.08	316L
Reducer Ecc 1.6x63.5-38.1	0.13	316L
Reducer Ecc 1.6x63.5-50.8	0.13	316L
Reducer Ecc 1.6x76.2-38.1	0.13	316L
Reducer Ecc 1.6x76.2-50.8	0.19	316L
Reducer Ecc 1.6x76.2-63.5	0.18	316L
Reducer Ecc 1.6x101.6-38.1	0.19	316L
Reducer Ecc 1.6x101.6-50.8	0.30	316L
Reducer Ecc 1.6x101.6-63.5	0.32	316L
Reducer Ecc 1.6x101.6-76.2	0.33	316L
Reducer Ecc 1.6x127x101.6	0.59	316L
Reducer Ecc 1.6x152.4-76.2	0.79	316L
Reducer Ecc 1.6x152.4x101.6	0.98	316L
Shorter reducer. Height equal to widest diameter.
