Swaging and End Forming

Manipulating tube size and shape is made easy with our swaging process.

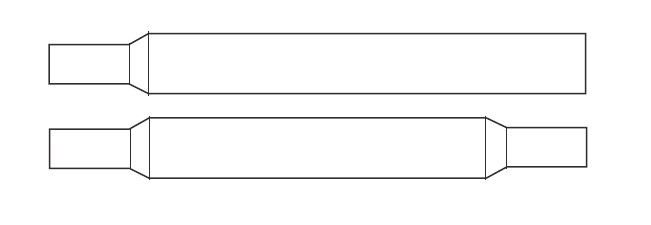

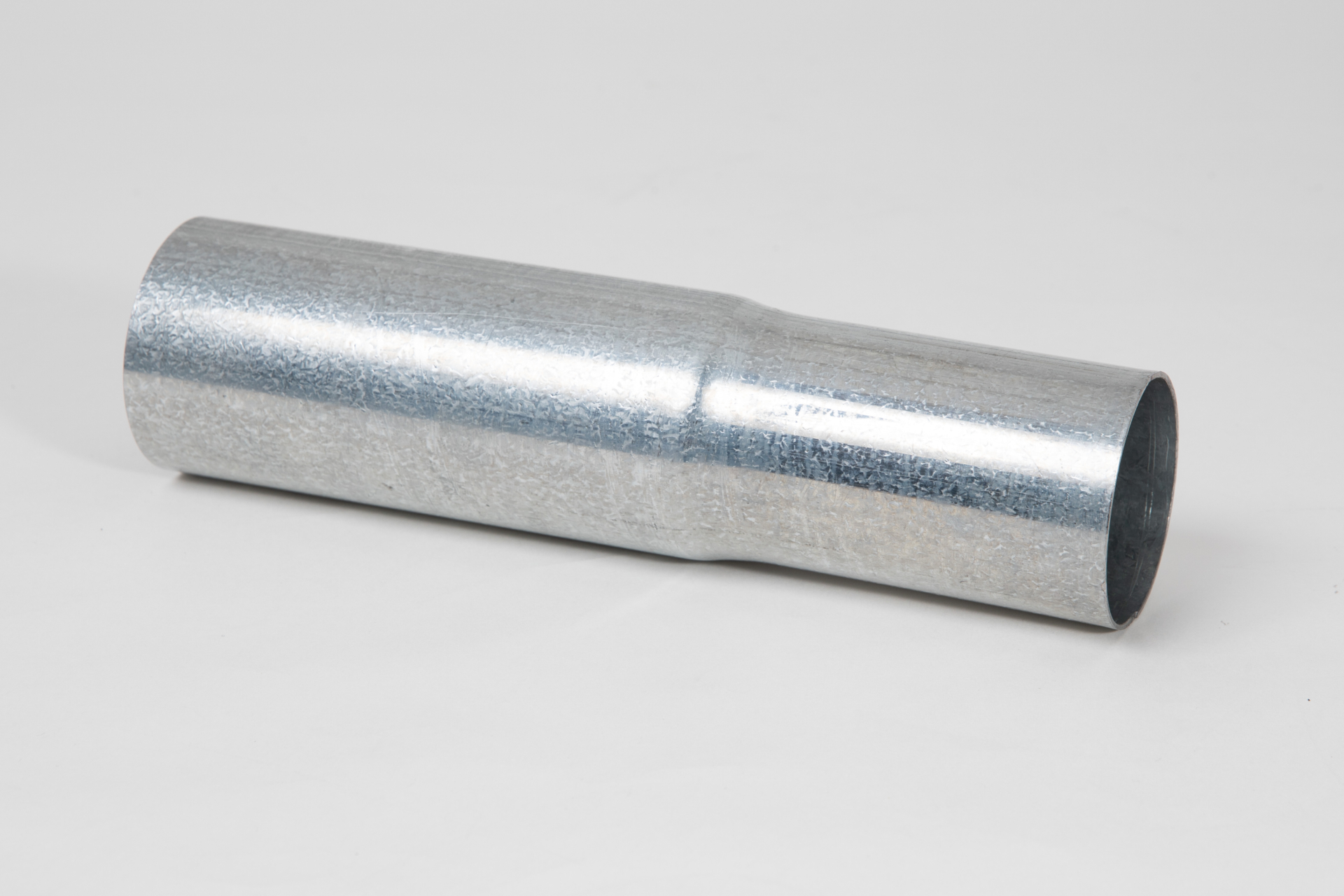

Swaging involves reducing or increasing the diameter of the tube while increasing or decreasing its length.

  • Common applications are automotive, furniture, medical, sporting equipment or anywhere a temporary sleeved join or diameter reduction is required.

Key Features Include

  • Swaging is available for most of our manufactured sizes from 15.9-63.5mm
  • The maximum swage length is 90mm.
  • Other sizes available by request, MOQ’s apply.
Swage Tooling List
Swage(mm) Tube Profile (mm)
13.2, 14 15.9
15, 17 19.1
19.5, 20.7, 21.6, 21.8 22.2
22.5, 24 25.4
25.7, 26.8 28.6
28.1, 28.6, 30 31.8
34.4, 35 38
40 41.3
42.5 44.5
46.6, 50 50.8
55 57.2
60.15 63.5
