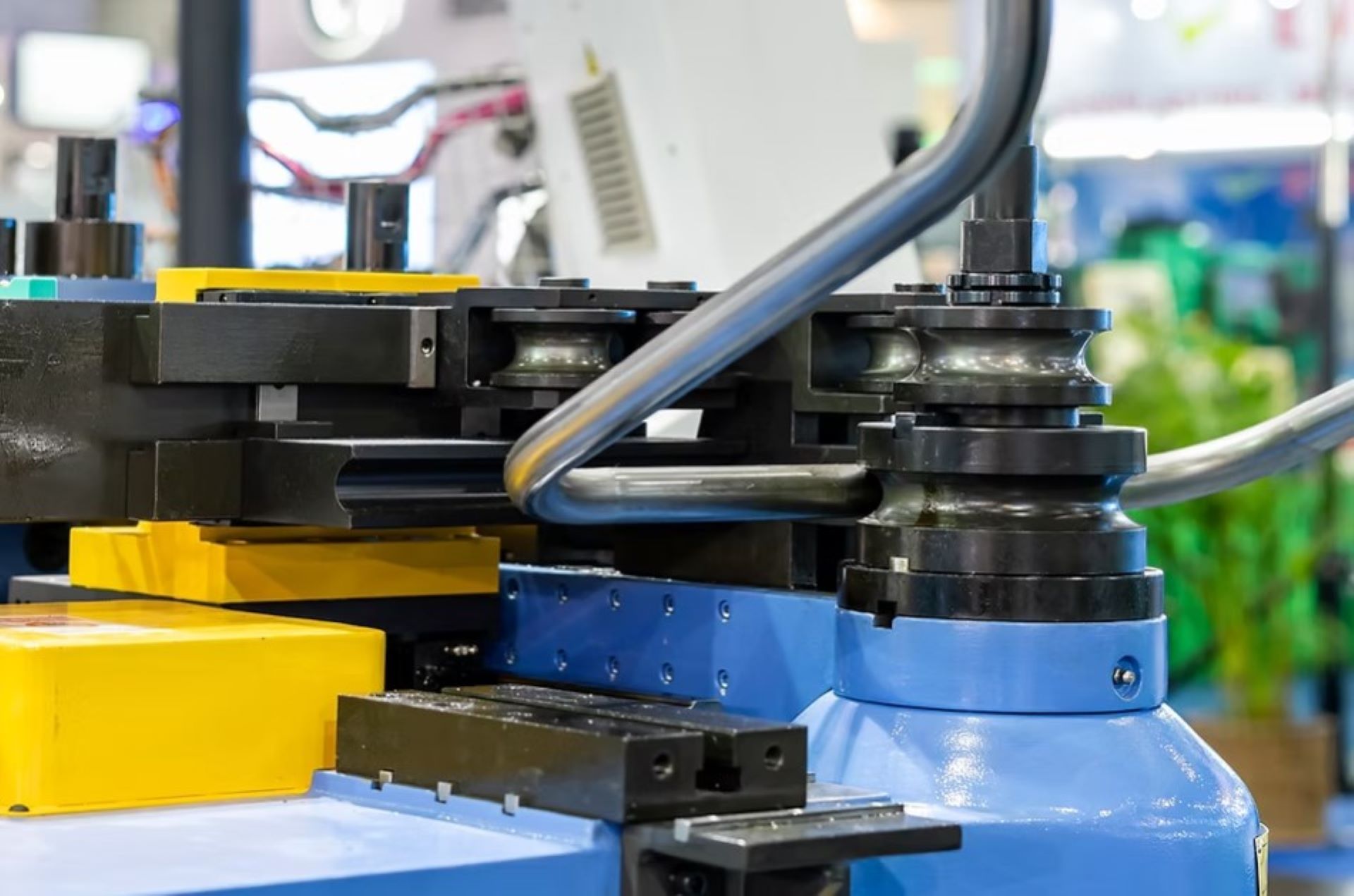

Industrial Tube Manufacturing provides a specialised CNC Tube Bending service for Precision Mild Steel Tube, Stainless Steel Tube and Aluminium tube.
Supported internally with a mandrel during the bending process, our approach ensures minimal deformation and a high quality, precise, result.
With capacity up to 90mm in diameter, our 3-Axis CNC Benders can achieve extremely accurate and complex tube bends. Our bend tooling is specified to the exacting specifications of our own manufactured tube for optimum fit and improved formability.
We are also able to bend tube that has been previously laser cut, should you need features such as holes, scallops or angle cut ends in your finished components.
| Tube Size (mm) | Centreline Bend Radius (mm) | Wall Thickness (mm) | Minimum Straight between bends (mm) |
|---|---|---|---|
| 25.4 | 64.3 | 1.6, 2.0 | 60 |
| 31.8 | 97.6 | 1.6, 2.0 | 80 |
| 38.1 | 117.1 | 1.6, 2.5 | 95 |
| 44.5 | 77.9, 137.5 | 1.6, 2.5 | 110 |
| 50.8 | 88.9, 155.6 | 1.6, 2.5 | 125 |
| 63.5 | 97.7 | 1.6, 2.0, 2.5 | 140 |
| 76.2 | 115.4 | 1.6, 2.0, 4.75 | 170 |
| 88.9 | 133.35 | 1.6, 2.0 | 180 |
| 25.4x25.4 | 76.1 | 1.6, 2.0 | 80 |
